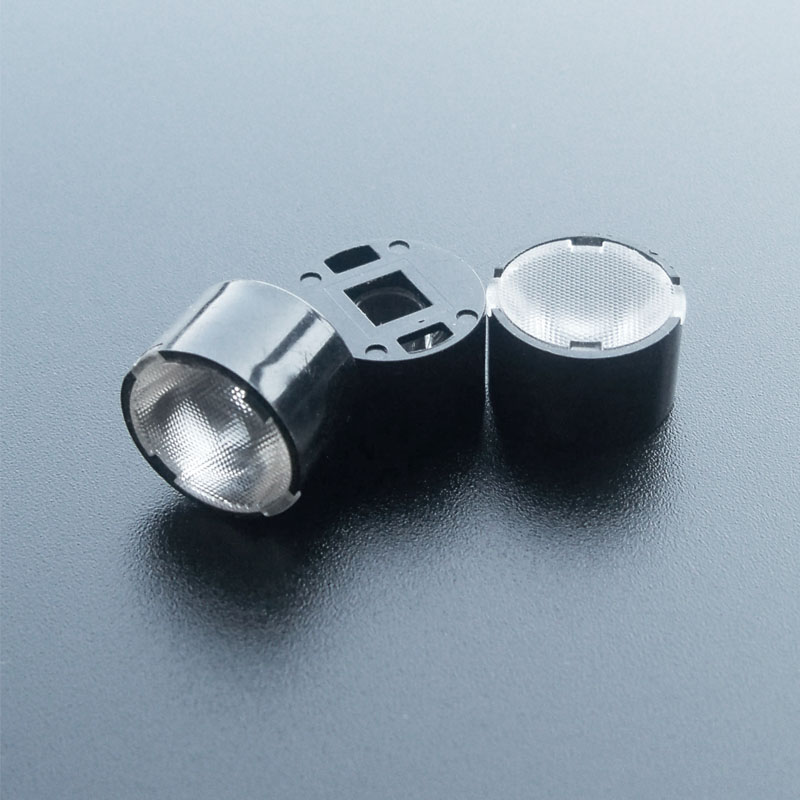

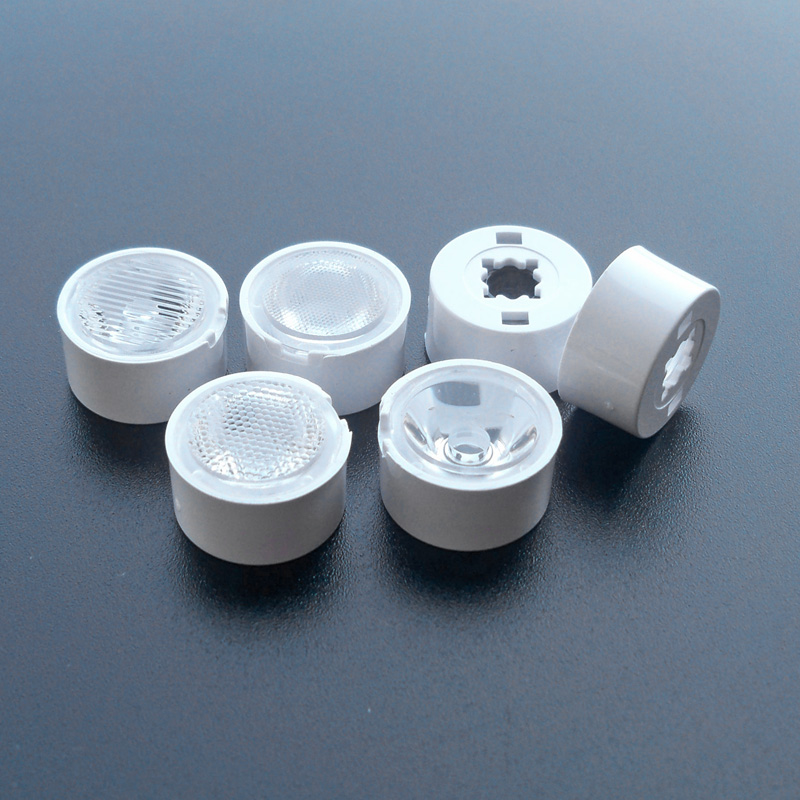

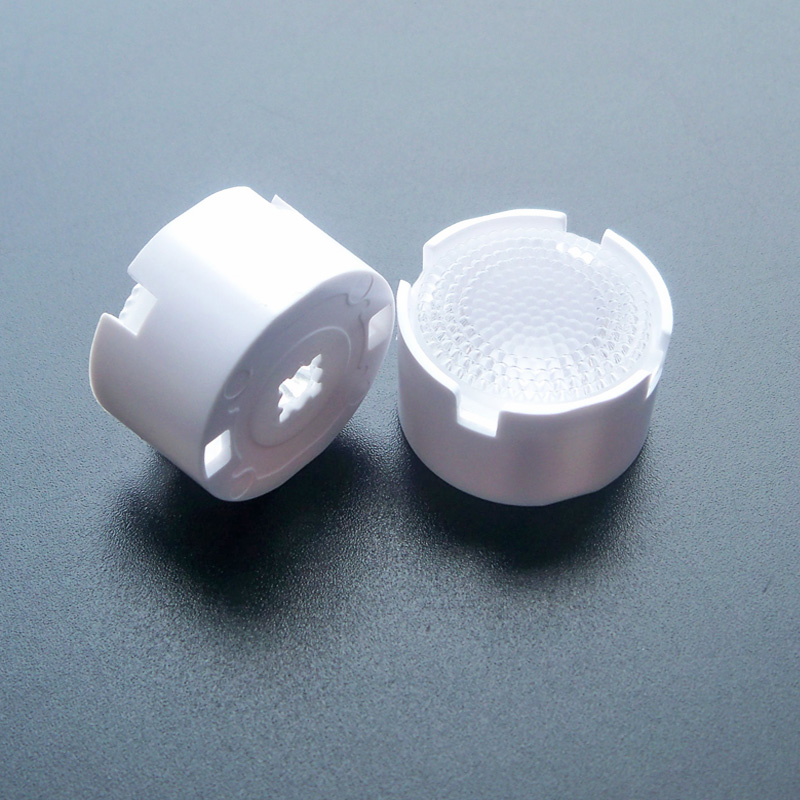

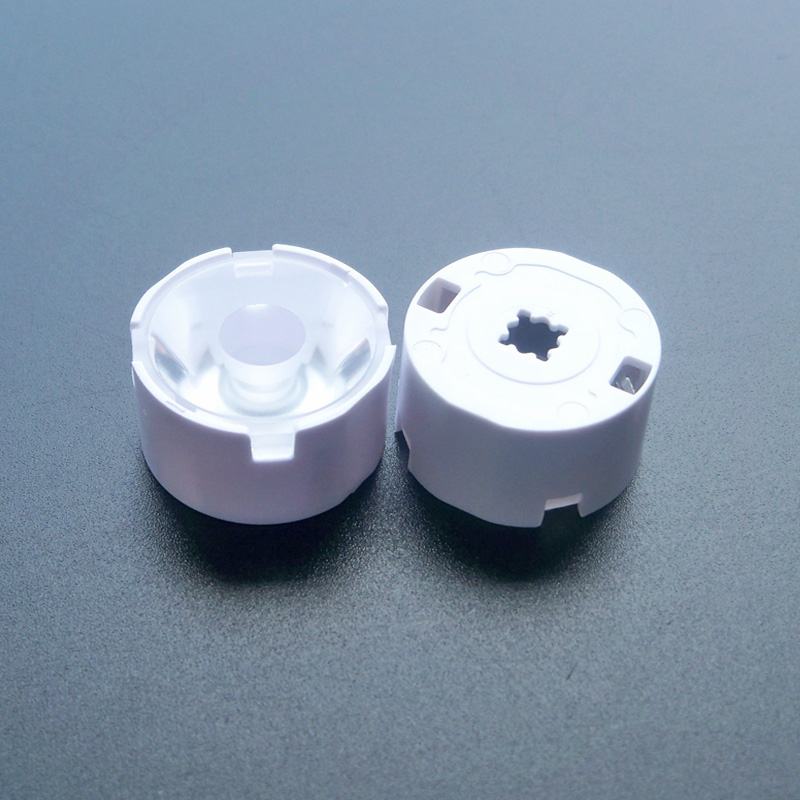

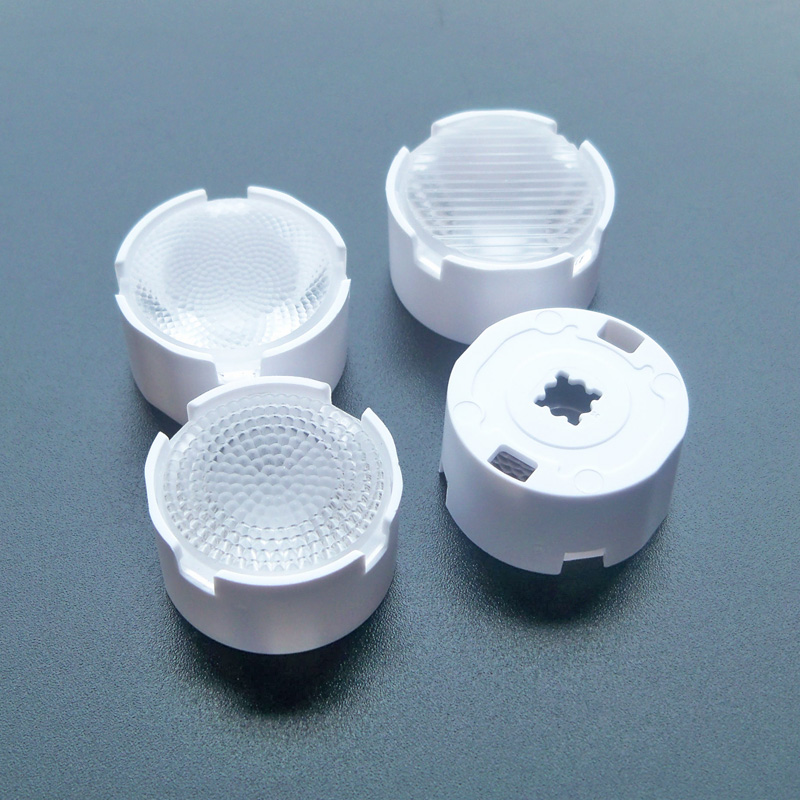

Ø21.7mm optics PMMA lens with Tape for wall-wash and sports lighting and CREE XPE OSRAM P7 2525 3030 LEDs(HX-PHK Series)

HONGXUAN'S well-established HX-PHK family with symmetric and asymmetric beams. HX-PHK comes with a thinner holder design and is backwards compatible with previous generations. The wall-washing beam is designed to be used in groups to provide uniform illumination with a typical installation distance from the wall of 10-20 cm and optimal luminaire spacing of 5-15 cm.


Product Description

Diameter 21.7mm easily sealable TIR-lenses for up to 3535 ,3030,2525 RGB size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square，OSRAM P7;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-PHK-8 D21.7 * H12.2 8° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
2 HX-PHK-12 D21.7 * H12.2 12° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
3 HX-PHK-15 D21.7 * H12.2 15° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
4 HX-PHK-25 D21.7 * H12.2 25° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
5 HX-PHK-30 D21.7 * H12.2 30° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
6 HX-PHK-45 D21.7 * H12.2 45° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
7 HX-PHK-60 D21.7 * H12.2 60° 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
8 HX-PHK-1530 D21.7 * H12.2 15(±5) x 30(±5) 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA
9 HX-PHK-2060 D21.7 * H12.2 20(±5) x 60(±5) 2525,3030,3535,OSRAM P7,RGB LEDs PC +PMMA


Product Download

Product Application

Ø21.7mm optics PMMA lens with Tape for wall-wash and sports lighting and CREE XPE OSRAM P7 2525 3030 LEDs(HX-PHK Series) HONGXUAN'S well-established HX-PHK family with symmetric and asymmetric beams. HX-PHK comes with a thinner holder design and is backwards compatible with previous generations. The wall-washing beam is designed to be used in groups to provide uniform illumination with a typical installation distance from the wall of 10-20 cm and optimal luminaire spacing of 5-15 cm.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
