2X2 arrays 50 x 50 mm typically IESNA TPI TPII TPIII TPIV TPV Street lighting LED LENS for CREE XHP35 OSRAM P8 S8 3030 3535 5050 7070 size LED packages.( HX-ALD50 Series )

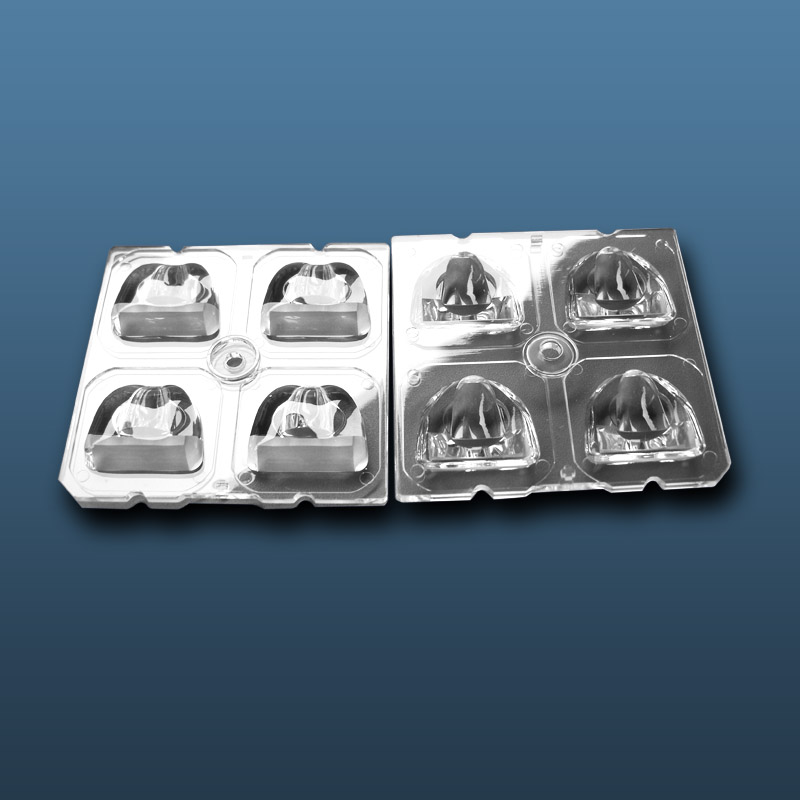

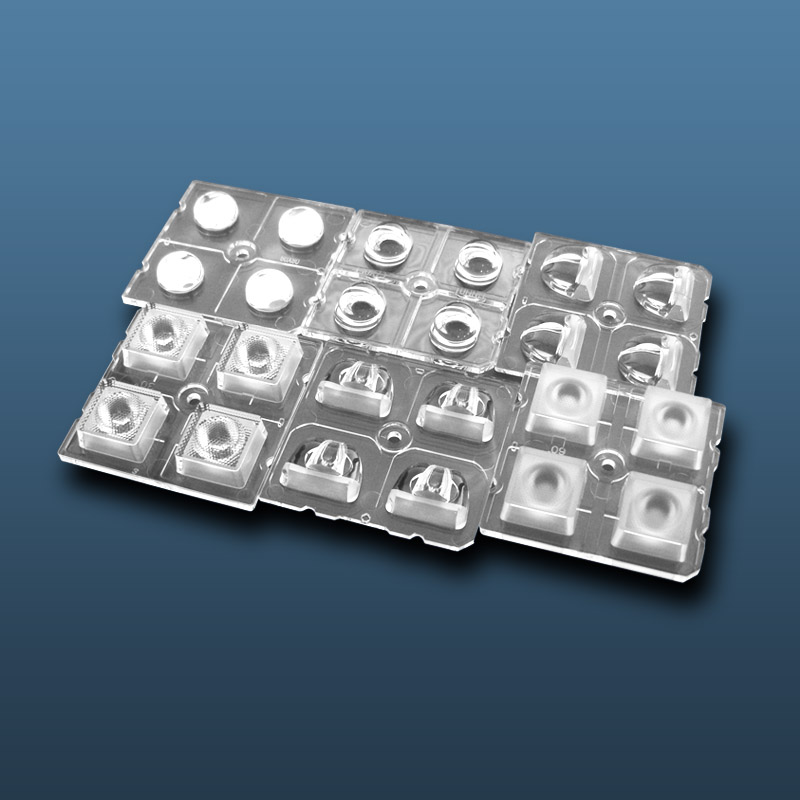

HX-ALD50 Series (50x50mm 2X2) is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;


Product Description

1. HX-ALD50 Series optical systems are ready-to-use optical panels are ideal for street and wide area LED lighting projects.

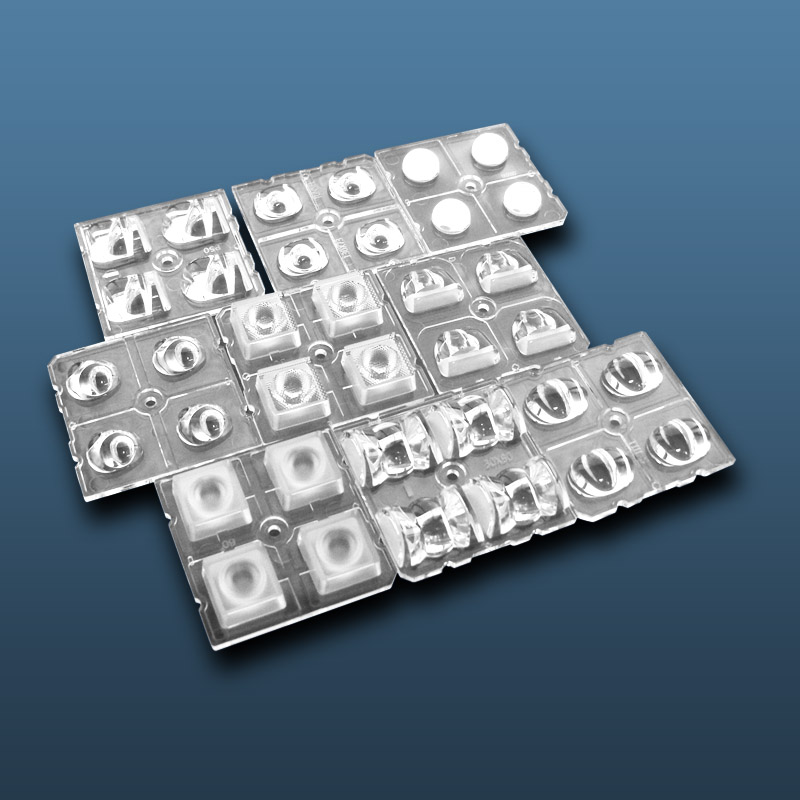

2. HX-ALD50 Series is first and unique system using fifteen different core optics with different geometries in the same system and makes virtually possible to customize any application.
3. HX-ALD50 Series 50 x 50mm 2X2 arrays led lens for 3030,3535,5050,7070 size LED packages,for street lighting,flood lights,tunnel lights,stadium lights,parking lot lighting.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
CREE XML,MHB;
OSRAM SSL80,SSL150,Square,P8,S8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535,5050;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535,5050,7070 ;


CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 3030 3535 5050 7070 TPI TPII TPIII TPIV TPV Street lighting LED LENS

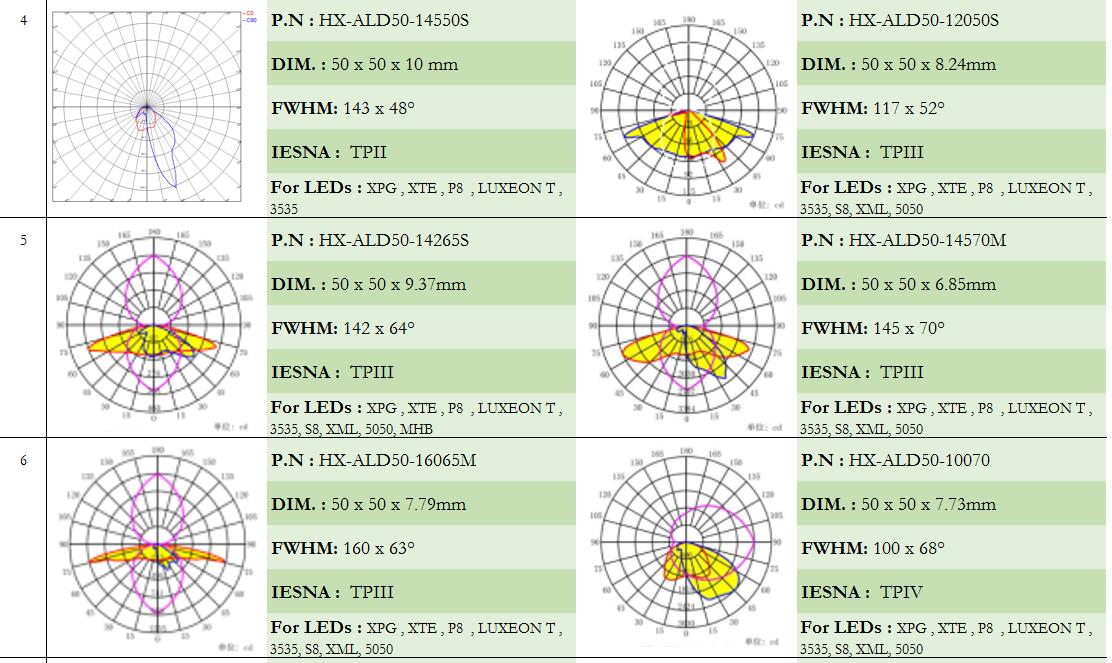

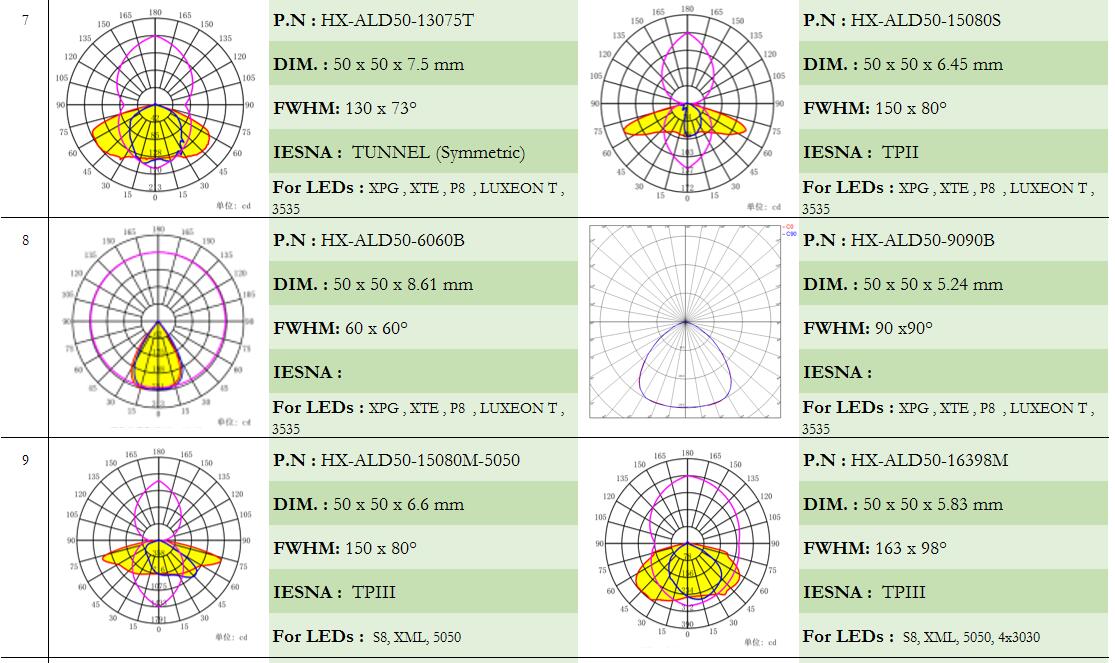

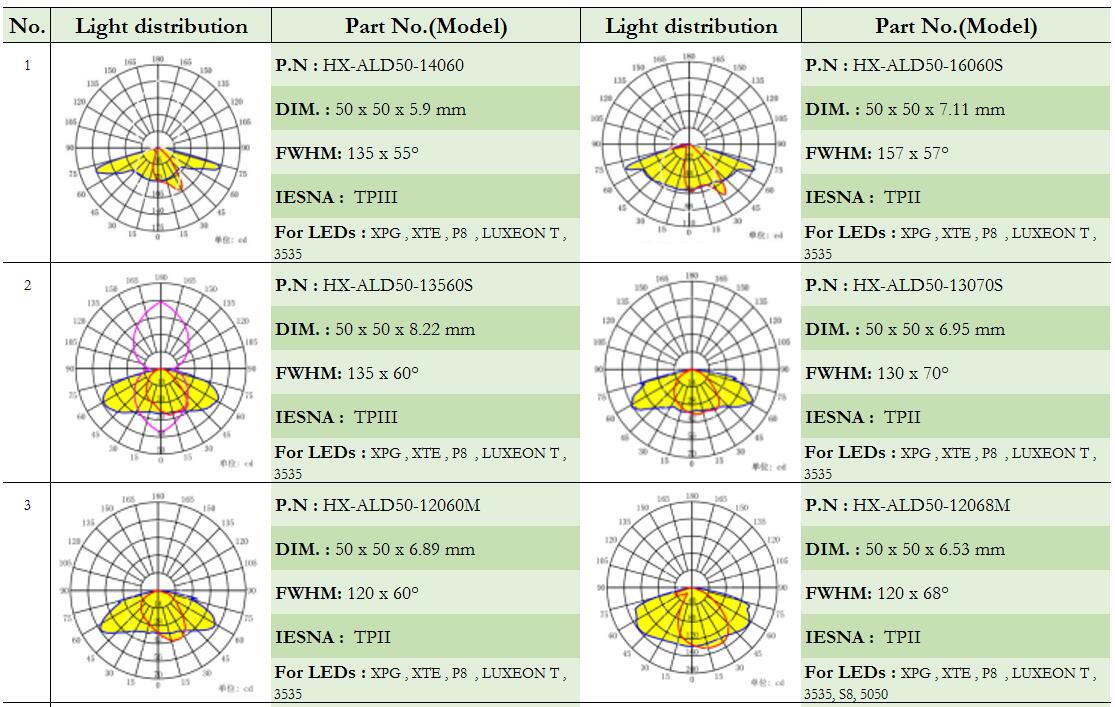

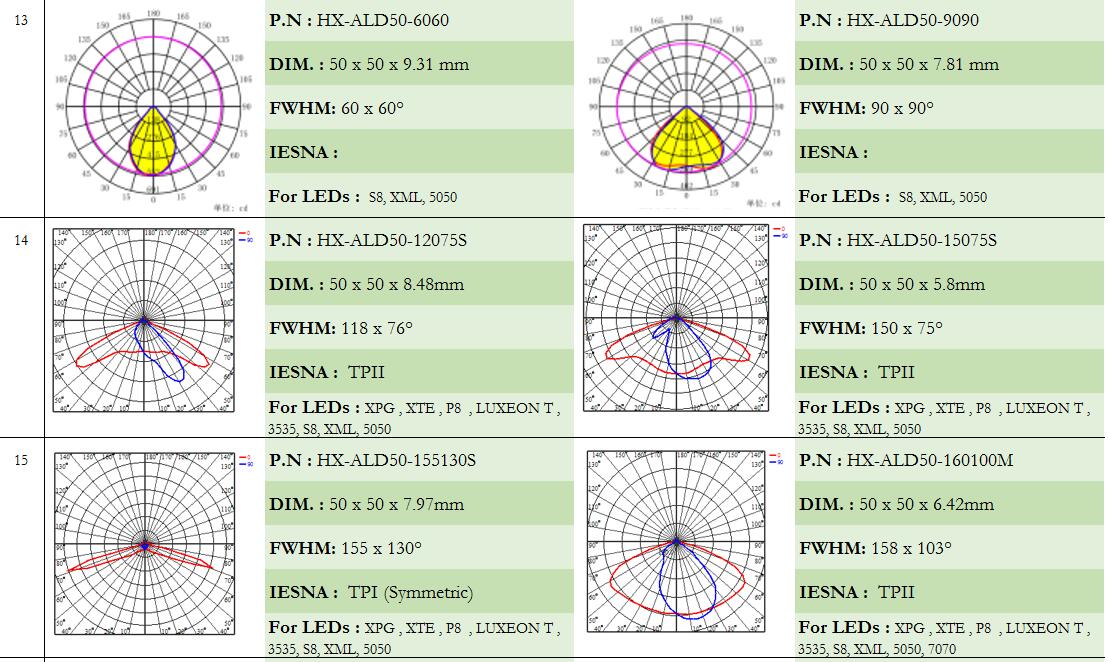

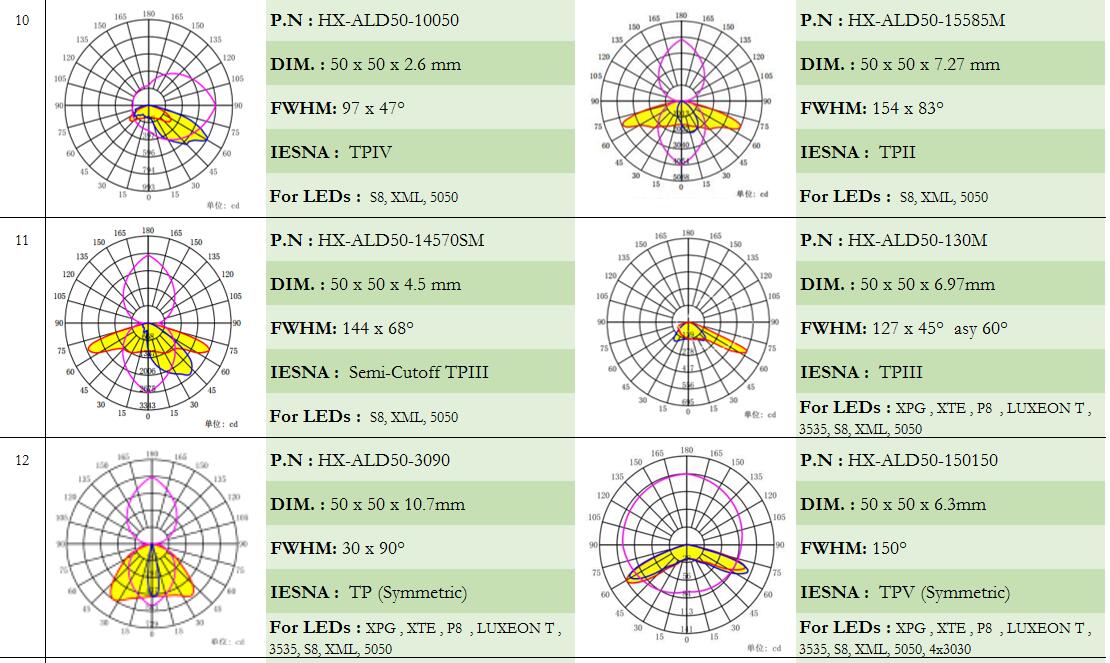

Product Selection Guide:

No. Part No.(Model) Matrix DIM(mm) Field Angle(deg) For LEDs Type Material
1 HX-ALD50-14060 4IN1 50*50*5.9 135*55°  3030,  3535   PC Anti-UV
2 HX-ALD50-16060S 4IN1  49.9*49.9*7.11 157*57° 3030,  3535 TPII PC Anti-UV
3  HX-ALD50-13560S 4IN1 49.89*49.89*8.22 135*60° 3030,  3535 TPIII PC Anti-UV
4 HX-ALD50-13070S 4IN1 49.89*49.89*6.95 130*70° 3030,  3535 TPII PC Anti-UV
5 HX-ALD50-12060M 4IN1 49.89*49.89*6.89 120*60° 3030,  3535 TPII PC Anti-UV
6 HX-ALD50-14550S 4IN1 49.89*49.89*10 143*48° 3030,  3535 TPII PC Anti-UV
7 HX-ALD50-14570M 4IN1 49.89*49.89*6.85 145*70° 3030,  3535 TPIII PC Anti-UV
8 HX-ALD50-16065M 4IN1 49.8*49.8*7.79 160*63° 3030,  3535 TPIII PC Anti-UV
9 HX-ALD50-10070 4IN1 49.89*49.89*7.73 100*68° 3030,  3535 TPIV PC Anti-UV
10 HX-ALD50-13075T 4IN1 49.89*49.89*7.5 130*73° 3030,  3535 TUNNEL PC Anti-UV
11 HX-ALD50-15080S 4IN1 49.89*49.89*6.45 150*80° 3030,  3535 TPII PC Anti-UV
12 HX-ALD50-6060B 4IN1 49.89*49.89*8.61 60*60° 3030,  3535   PC Anti-UV
13 HX-ALD50-9090B 4IN1 49.89*49.89*5.24 90*90° 3030,  3535   PC Anti-UV
14 HX-ALD50-150150 4IN1 49.89*49.89*6.3 150*150° 3030,  3535, 5050   PC Anti-UV
15 HX-ALD50-12050S 4IN1 49.89*49.89*8.24 117*52° 3030, 3535, 5050 TPIII PC Anti-UV
16 HX-ALD50-12068M 4IN1 49.89*49.89*6.53 120*68° S8       5050 TPII PC Anti-UV
17 HX-ALD50-12075S 4IN1 49.89*49.89*8.48 118*76° 3030, 3535, 5050 TPII PC Anti-UV
18 HX-ALD50-14265S 4IN1 49.89*49.89*9.37 142*64° MHB TPIII PC Anti-UV
20 HX-ALD50-3090 4IN1 49.89*49.89*10.7 30*90° 3030, 3535, 5050   PC Anti-UV
21 HX-ALD50-10050 4IN1 49.89*49.89*2.6 97*47° 5050 TPIV PC Anti-UV
22 HX-ALD50-15585M 4IN1 49.8*49.8*7.27 154*83° 5050 TPII PC Anti-UV
23 HX-ALD50-14570SM 4IN1 49.8*49.8*4.5 144*68° 5050 Semi-Cutoff TPIII PC Anti-UV
24 HX-ALD50-15075S 4IN1 49.89*49.89*5.80 150*75° 3030, 3535, 5050 TPII PC Anti-UV
25 HX-ALD50-15080M-5050 4IN1 49.89*49.89*6.6 150*80° 5050 TPIII PC Anti-UV
26 HX-ALD50-160100M 4IN1 49.89*49.89*6.42 158*103° 3030, 3535, 5050 TPII PC Anti-UV
27 HX-ALD50-16398M 4IN1 49.8*49.8*5.83 163*98° 5050    4*3030 TPIII PC Anti-UV

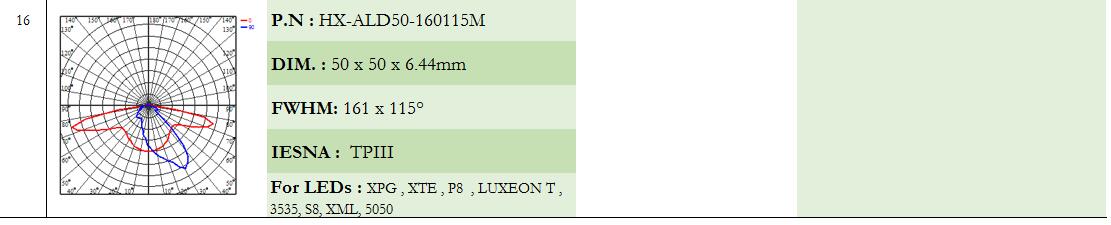

28 HX-ALD50-160115M 4IN1 49.89*49.89*6.44 161*115° 3030, 3535, 5050 TPIII PC Anti-UV
29 HX-ALD50-155130S 4IN1 49.89*49.89*7.97 SY 155*130° 3030, 3535, 5050 TPI PC Anti-UV
30 HX-ALD50-130M-P65 4IN1 49.9*49.9*6.97 127 * 45° ASY65 3030, 3535, 5050 TPIII PC Anti-UV
31 HX-F50-150 4IN1 49.89*49.89*6.3 150° S8      4*3030   TPV PC Anti-UV


Product Download

Product Application

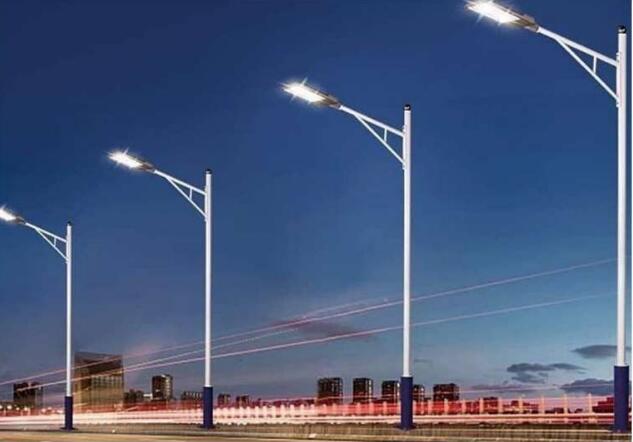

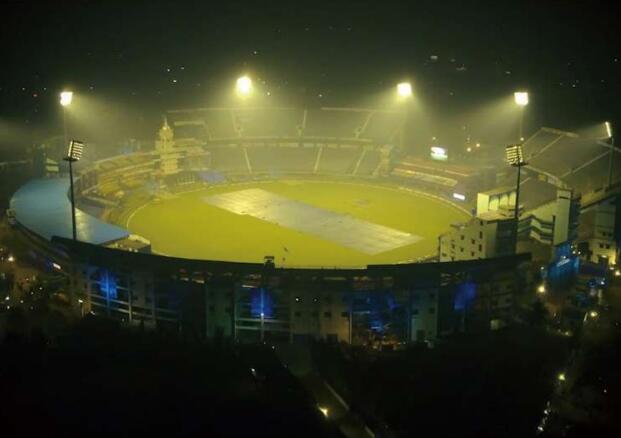

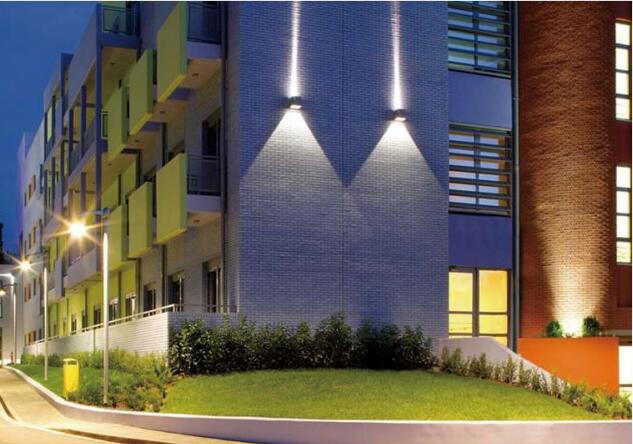

50 x 50 mm 2X2 arrays led lens for 3030,3535 5050 size LED packages,for street lighting,flood lights,tunnel lights,stadium lights,parking lot lighting.( HX-ALD50 Series ).HX-ALD50 Series (50x50mm 2X2) is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
