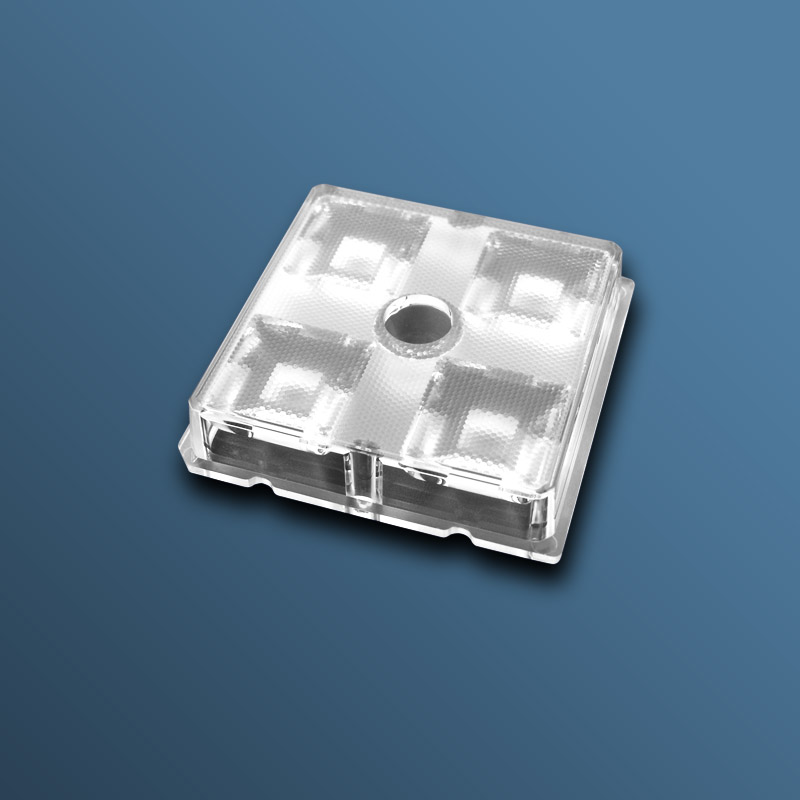

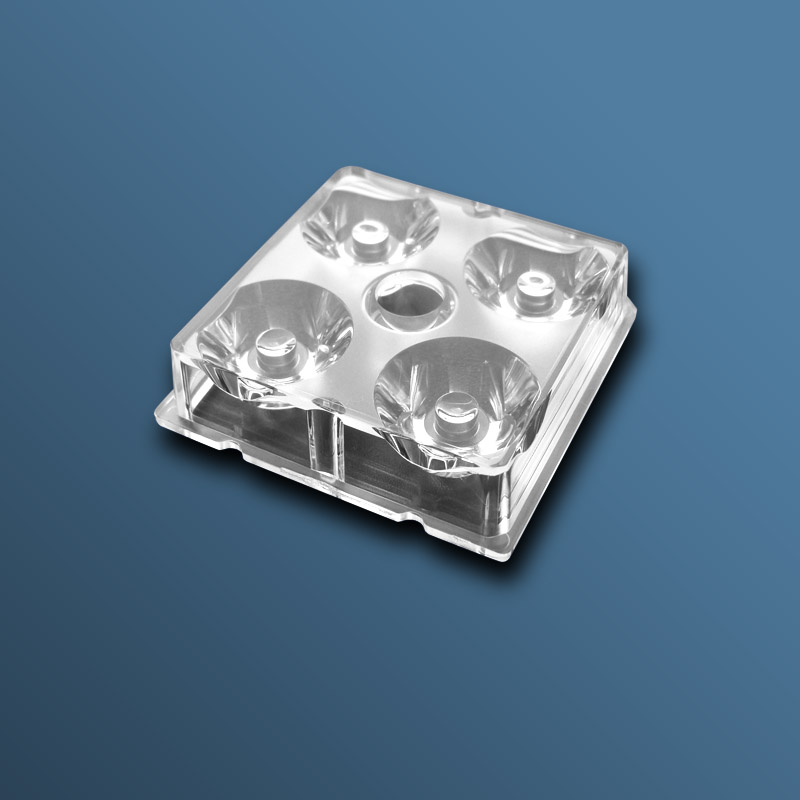

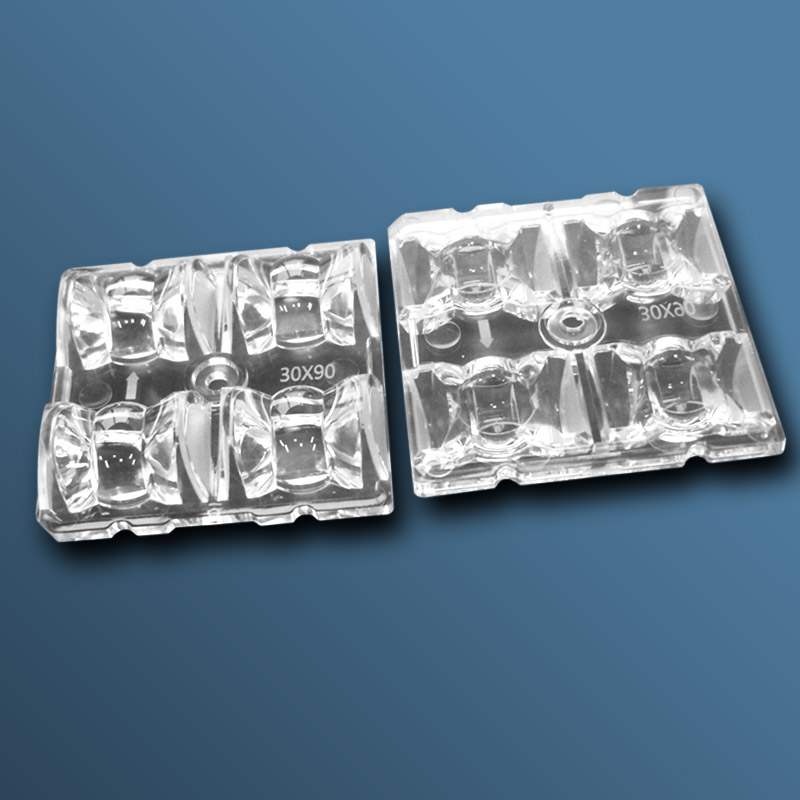

2X2 arrays 50 x 50 mm led lens for 3030 3535 5050 size LED packages for flood lights,tunnel lights,stadium lights,parking lot lighting,high bay lighting.( HX-F50 Series )

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.


Product Description

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting high bay lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
CREE XML,MHB;
OSRAM SSL80,SSL150,Square,P8,S8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535,5050;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535,5050,7070 ;

CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS

Product Selection Guide:

No. Part No.(Model) Matrix DIM(mm) Field Angle(deg) For LEDs Type Material

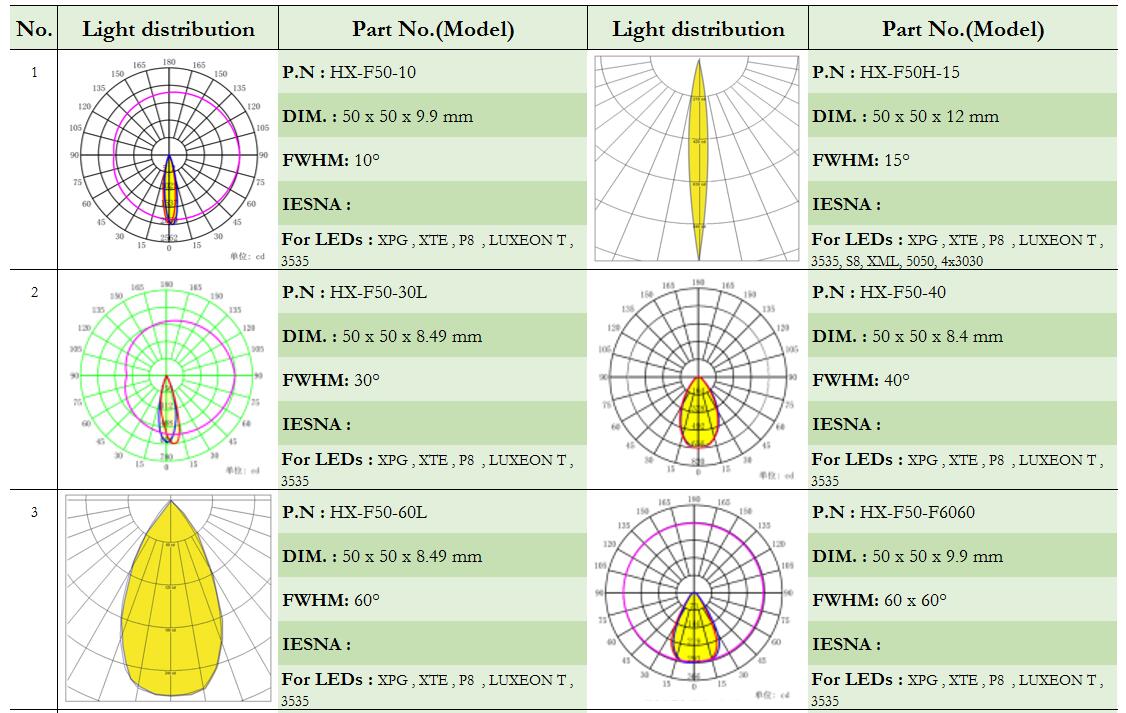

1 HX-F50DT-5 4IN1 50.0*50.0*11.1 5° 3030, 3535, 5050   PC Anti-UV
2 HX-F50H-10 4IN1 50.0*50.0*12.7 10° 3030, 3535, 5050   PC Anti-UV
3 HX-F50H-15 4IN1 49.89*49.89*12.0 15° 3030, 3535, 5050   PC Anti-UV
4 HX-F50H-20L 4IN1 49.89*49.89*12.0 20° 3030, 3535, 5050   PC Anti-UV
5 HX-F50-15-SP 4IN1 49.89*49.89*12.0 15° 3030, 3535, 5050   PC Anti-UV
6 HX-F50-20P5-SP 4IN1 49.89*49.89*14.3 20° asy 5°  3030, 3535, 5050   PC Anti-UV
7 HX-F50-30L-5050 4IN1 49.89*49.89*11.85 30° 5050   PC Anti-UV
8 HX-F50-40P5-SP 4IN1 49.89*49.89*14.3 40° asy 5°  3030, 3535, 5050   PC Anti-UV
9 HX-F50-50P5-SP 4IN1 49.89*49.89*14.3 50° asy 5°  3030, 3535, 5050   PC Anti-UV

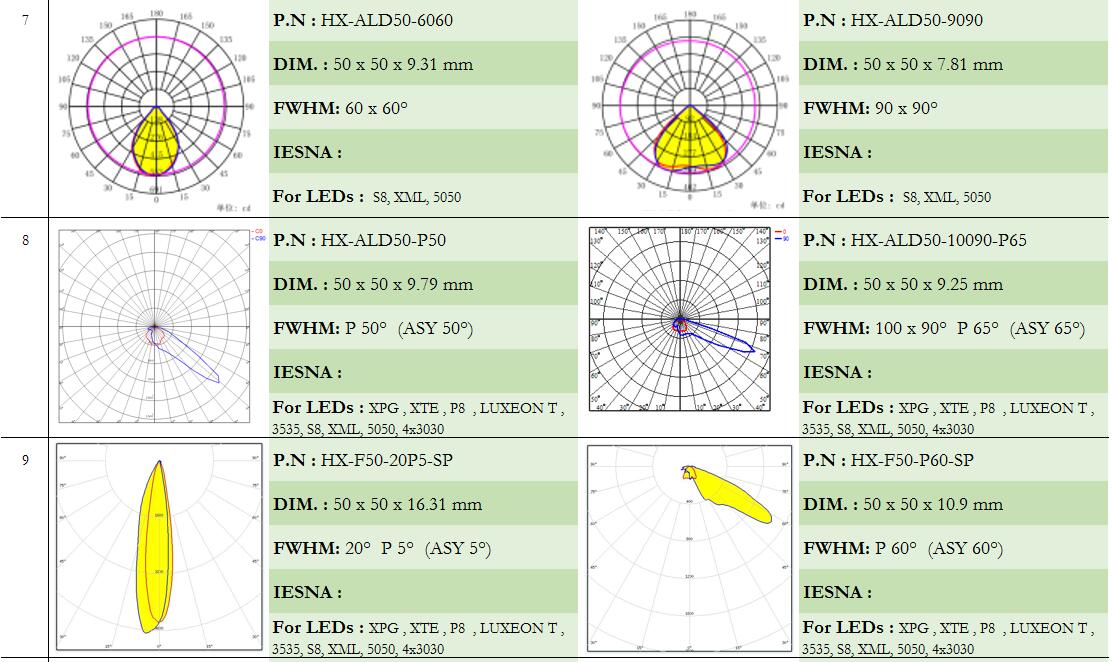

10 HX-ALD50-6060 4IN1 49.89*49.89*9.31 60*60° XML      5050   PC Anti-UV
11 HX-ALD50-9090 4IN1 49.89*49.89*7.81  90*90° XML      5050   PC Anti-UV
12 HX-F50-10 4IN1 49.89*49.89*9.9  10° 3030, 3535   PC Anti-UV
13 HX-F50-30L 4IN1 49.89*49.89*8.49 30° 3030, 3535   PC Anti-UV
14 HX-F50-40 4IN1 49.89*49.89*8.4  40° 3030, 3535   PC Anti-UV
15 HX-F50-60L 4IN1 49.89*49.89*8.49 60° 3030, 3535   PC Anti-UV

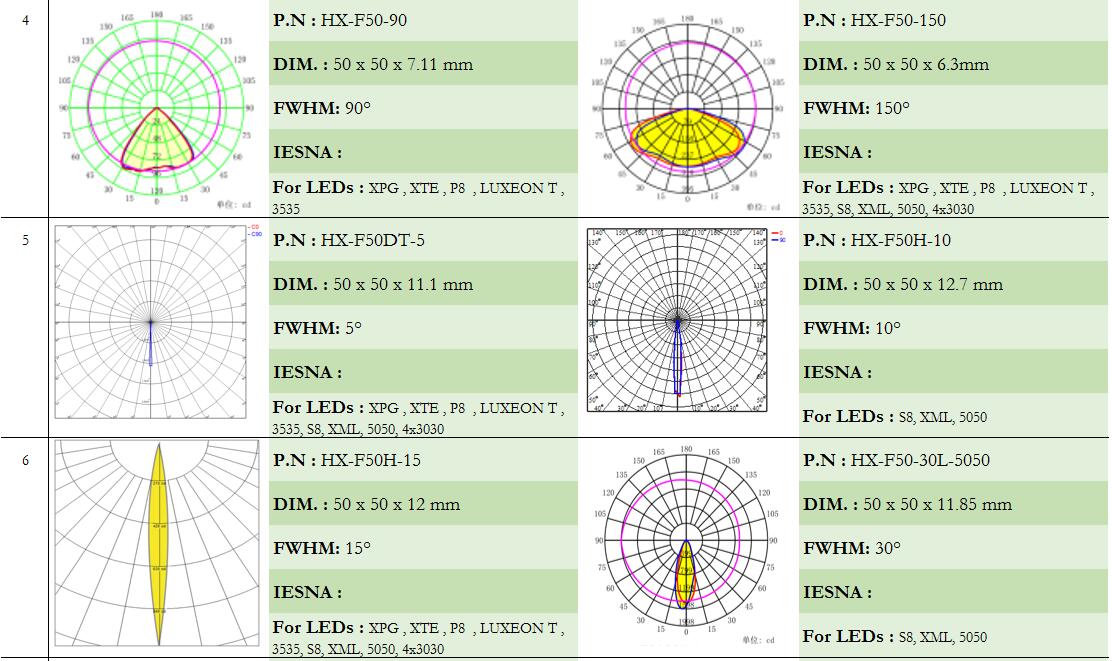

16 HX-F50-90 4IN1 49.89*49.89*7.11 90° 3030, 3535   PC Anti-UV
17 HX-ALD50-10090-P65 4IN1 49.89*49.89*9.79 100 * 90° ASY65 3030, 3535, 5050   PC Anti-UV
18 HX-F50-F6060 4IN1 49.89*49.89*9.9 60*60° 3030, 3535   PC Anti-UV
19 HX-F50-F9090 4IN1 49.89*49.89*7.81 90*90° 3030, 3535   PC Anti-UV
20 HX-ALD50-P50 4IN1 49.89*49.89*9.79 ASY P50° 3030, 3535, 5050   PC Anti-UV
21 HX-ALD50-P70 4IN1 49.89*49.89*9.79 ASY P70° 3030, 3535, 5050   PC Anti-UV

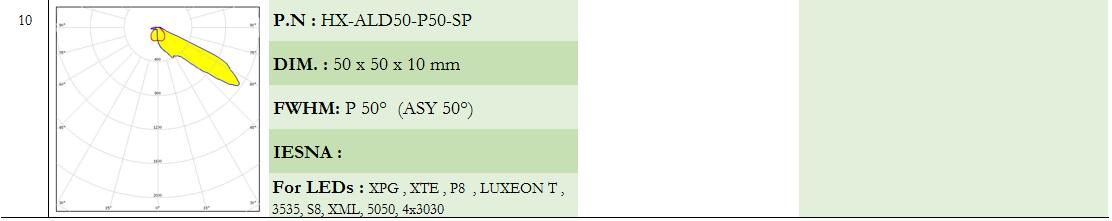

22 HX-ALD50-P50-SP 4IN1 49.89*49.89*10.0 ASY P50° 3030, 3535, 5050   PC Anti-UV
23 HX-F50-P60-SP 4IN1 49.89*49.89*10.9 ASY P60° 3030, 3535, 5050   PC Anti-UV


Product Download

Product Application

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.It is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
