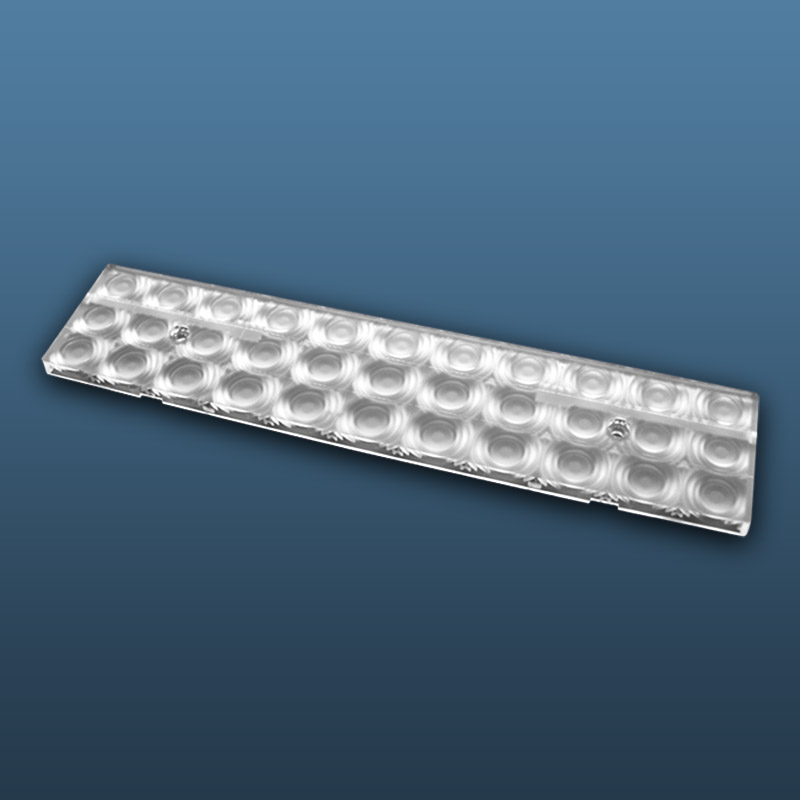

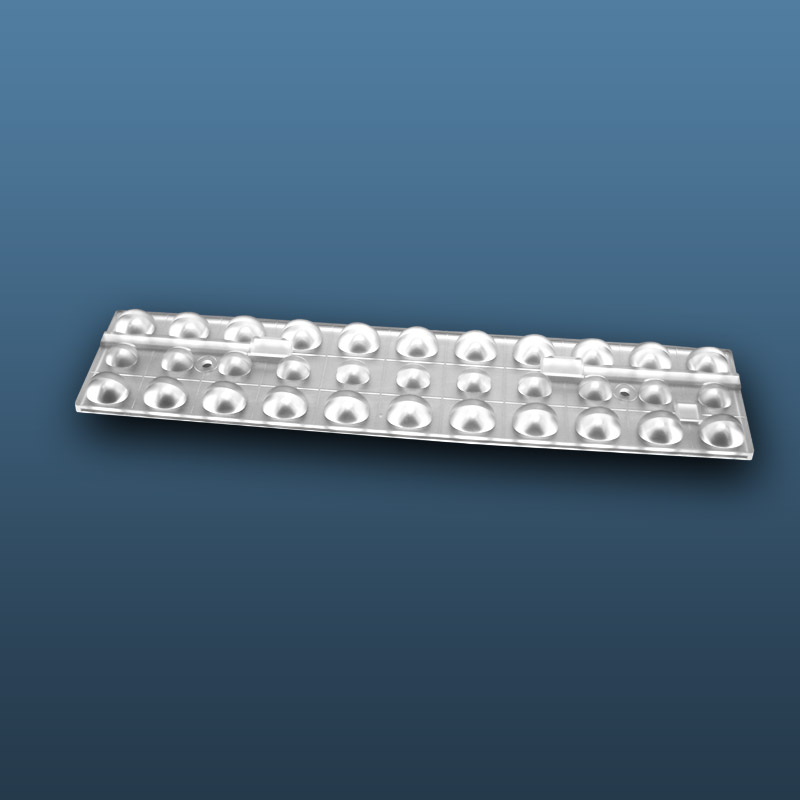

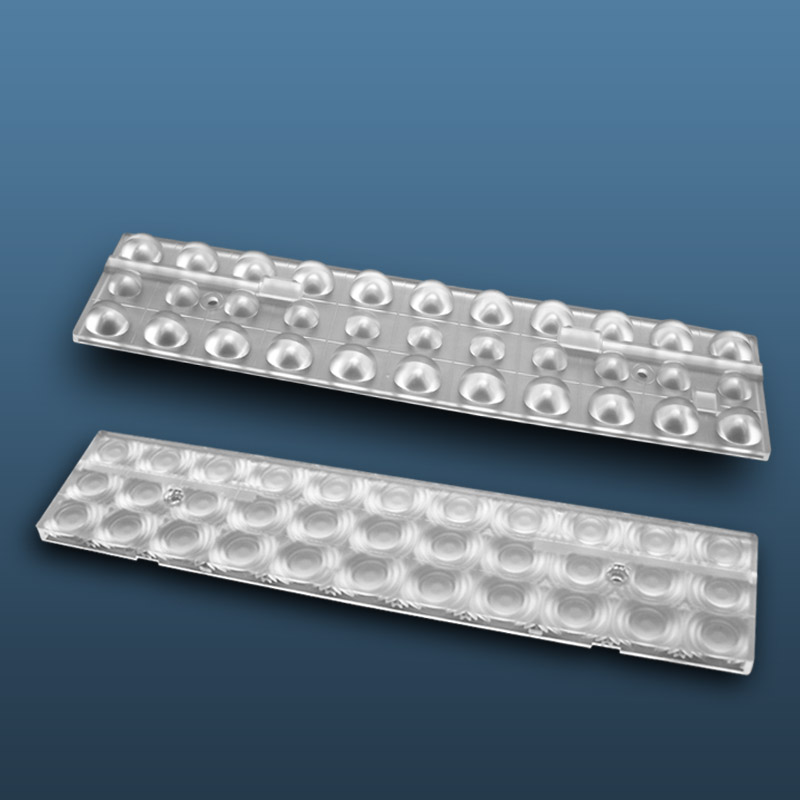

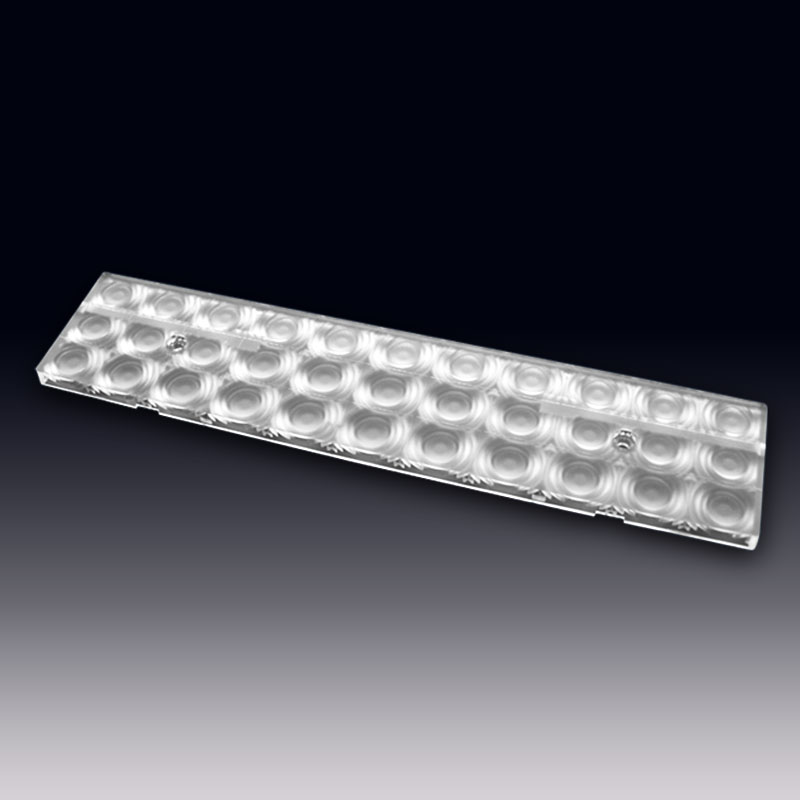

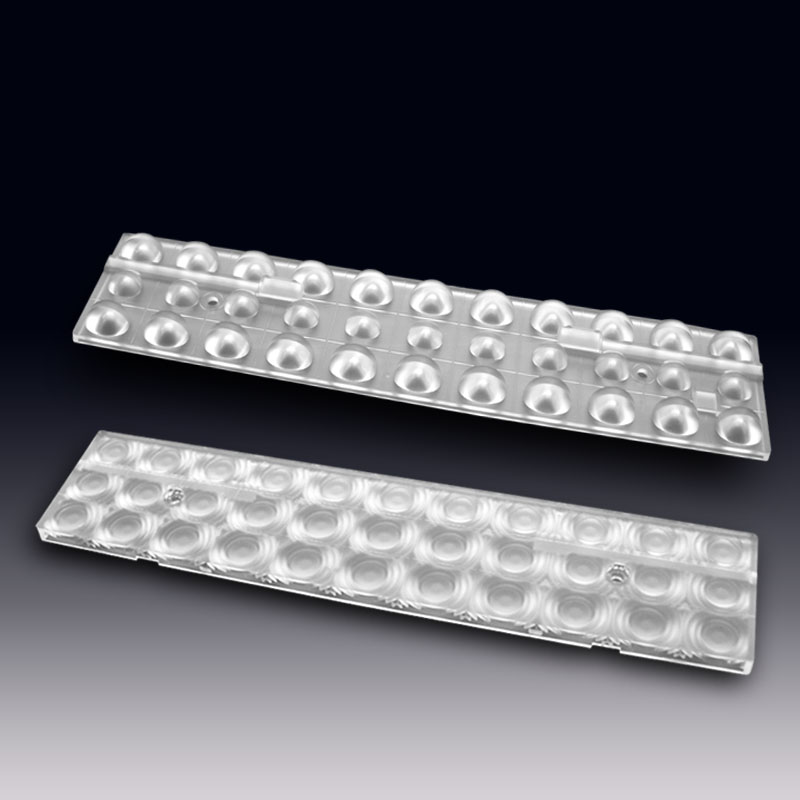

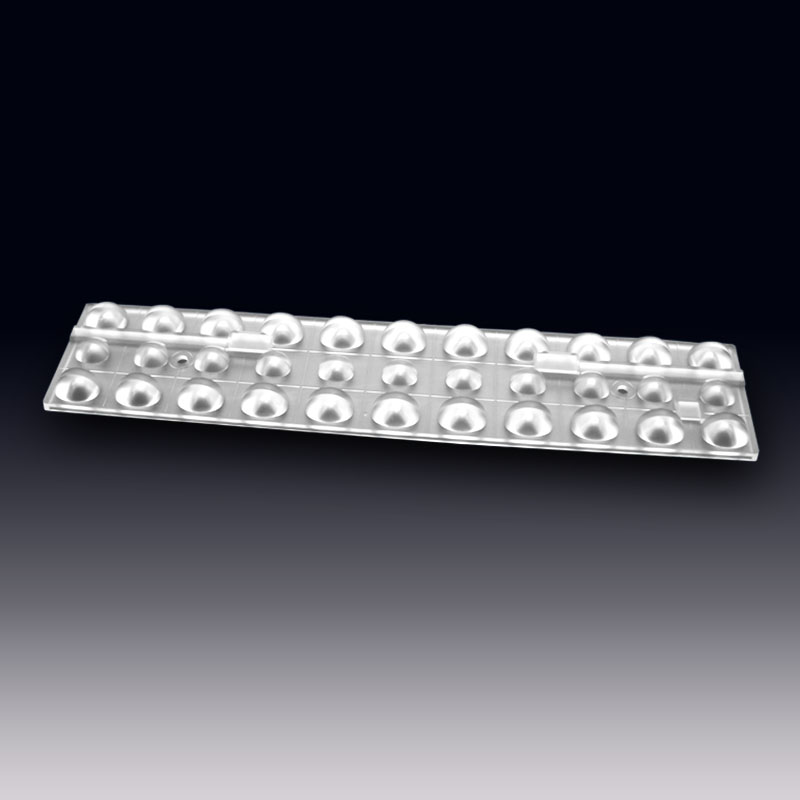

33 in1 compliant linear lenses for a range of mid- and high-power CREE 3535 LEDs and OSRAM 3030 LED clusters.( HX-3x11FR Series )

HX-3x11FR series is a versatile family of linear lenses meant for indoor lighting available in 3-row configurations. 3-row versions are optimized for industrial and architectural applications induding up to IP67 versions in PMMA and PC suitable for more challenging applications like horticultural lighting. A range of optional accessories (clips, grids) are available.


Product Description

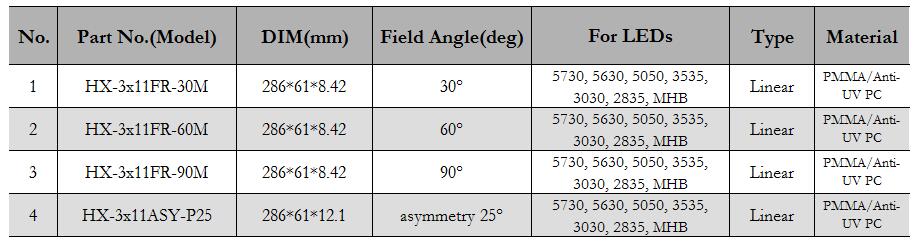

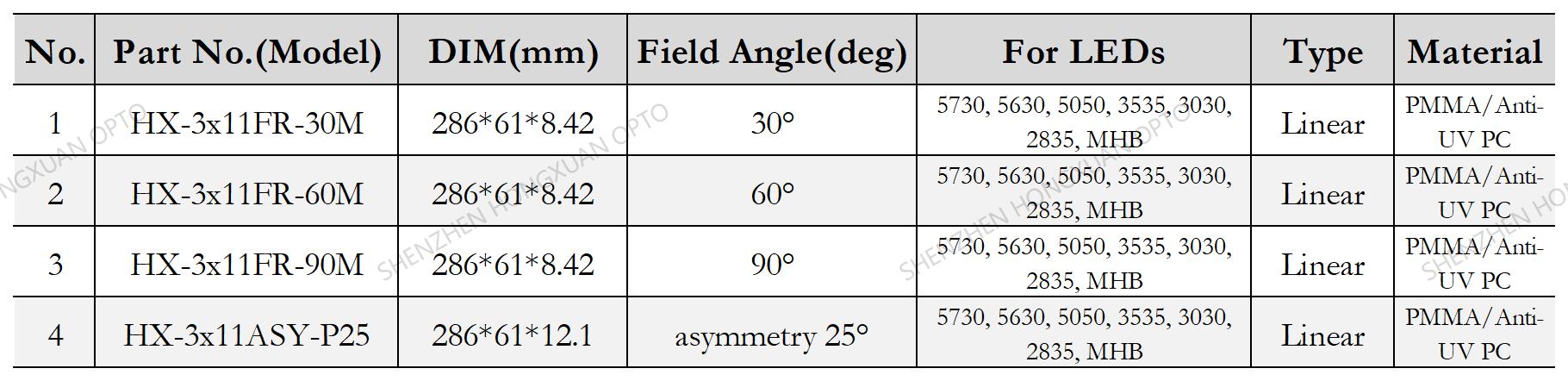

L 286.00 x W 61.00 x H 8.45 mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;

33in1 Linear light LED lens for OSRAM CP7P|CREE XP|Luxeon T|LG5630,6030,7030,5730 LEDs

Product Download

Product Application

HX-3x11FR series is a versatile family of linear lenses meant for indoor lighting available in 3-row configurations. 3-row versions are optimized for industrial and architectural applications induding up to IP67 versions in PMMA and PC suitable for more challenging applications like horticultural lighting. A range of optional accessories (clips, grids) are available.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
