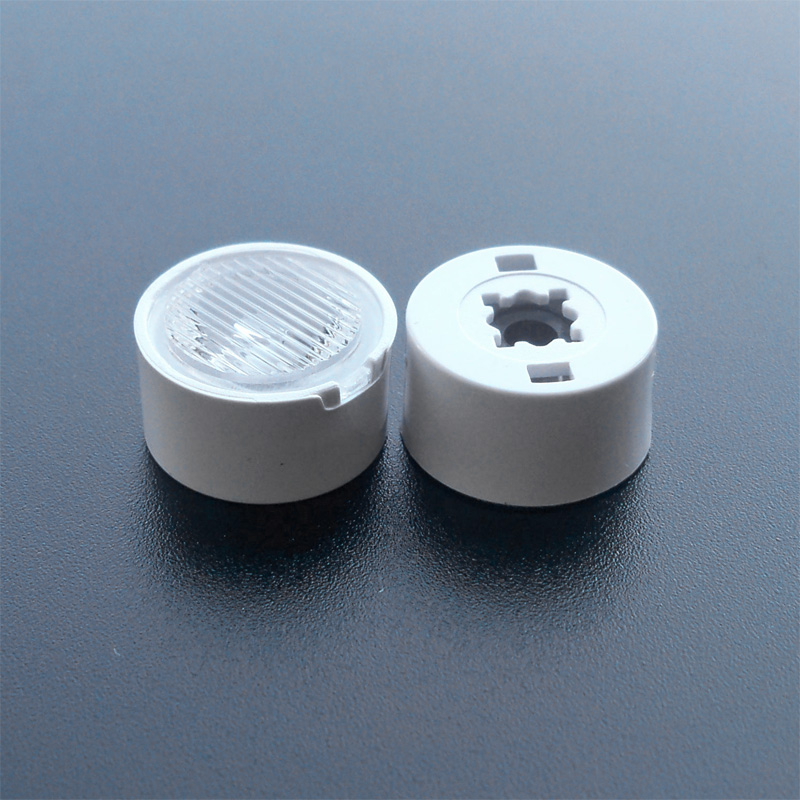

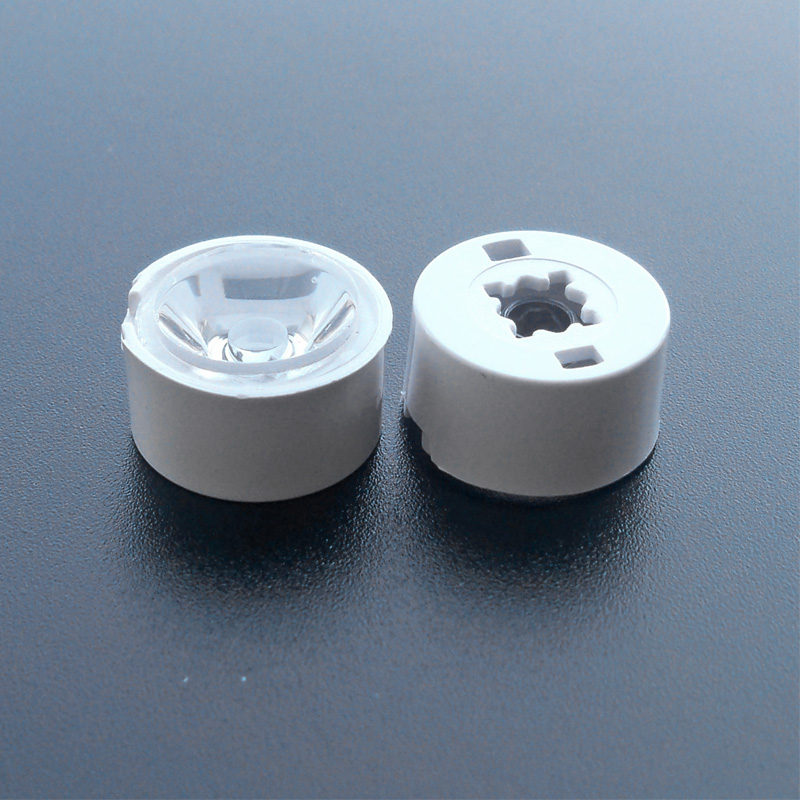

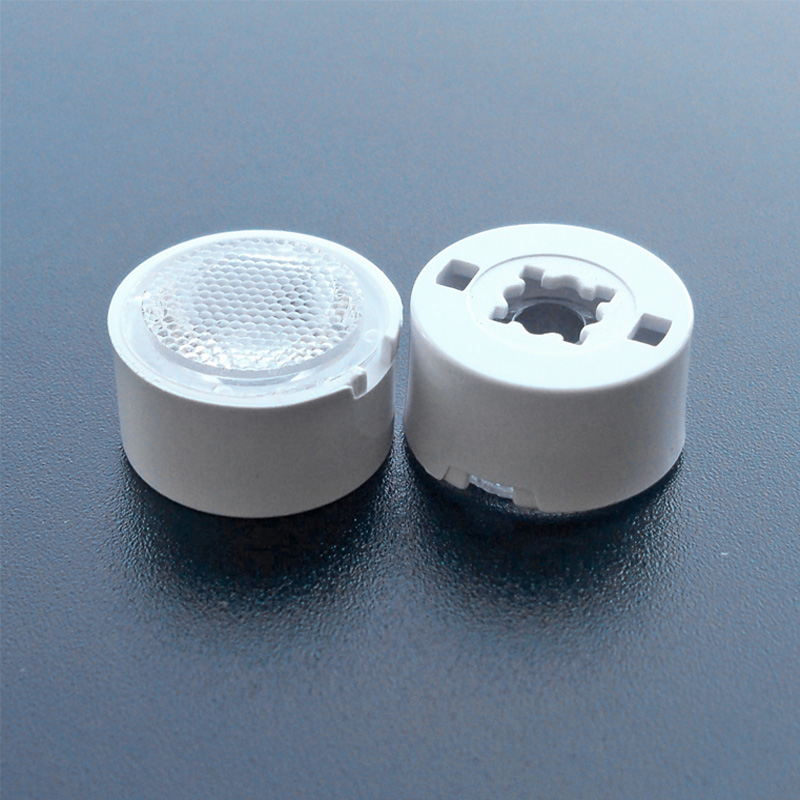

Miniature Dia.13.1mm TIR-lenses for jewellery shops reading lights torches and head lamps and CREE OSRAM SEOUL XP OSLON 3030 3535 LEDs(HX-12 Series)

D13.1x H7.58mm with holder .HX-12 series of lenses, measuring less than 13 mm in diameter and less than 8 mm tall, achieves up to 90% light transmission efficiency through superior design and materials. Each lens is mounted in a molded polycarbonate (PC) housing and attaches to the PCB by means of locating glue or tape or optional mounting clips and is built to maintain its physical integrity over the usable life of the luminaire.housing and attaches to the PCB by means of locating glue or tape or optional mounting clips and is built to maintain its physical integrity over the usable life of the luminaire.


Product Description

Diameter 12mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-12-12 D13.1 * H7.58 12° 2525,3030,3535 LEDs PC +PMMA
2 HX-12-30L D13.1 * H7.58 30° 2525,3030,3535 LEDs PC +PMMA
3 HX-12-45L D13.1 * H7.58 45° 2525,3030,3535 LEDs PC +PMMA
4 HX-12-60L D13.1 * H7.58 60° 2525,3030,3535 LEDs PC +PMMA
5 HX-12-90L D13.1 * H7.58 90° 2525,3030,3535 LEDs PC +PMMA
6 HX-12-2045 D13.1 * H7.58 15(±5) x 45(±5) 2525,3030,3535 LEDs PC +PMMA


Product Download

Product Application

Miniature Dia.13.1mm TIR-lenses for jewellery shops reading lights torches and head lamps and CREE OSRAM SEOUL XP OSLON 3030 3535 LEDs. D13.1x H7.58mm with holder .HX-12 series of lenses, measuring less than 13 mm in diameter and less than 8 mm tall, achieves up to 90% light transmission efficiency through superior design and materials. Each lens is mounted in a molded polycarbonate (PC) housing and attaches to the PCB by means of locating glue or tape or optional mounting clips and is built to maintain its physical integrity over the usable life of the luminaire.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
