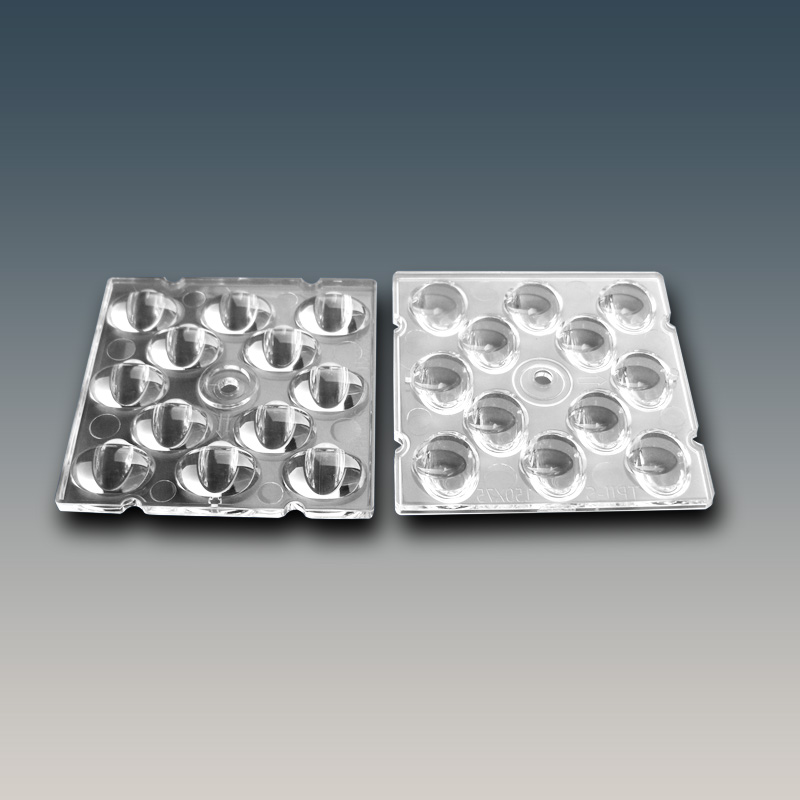

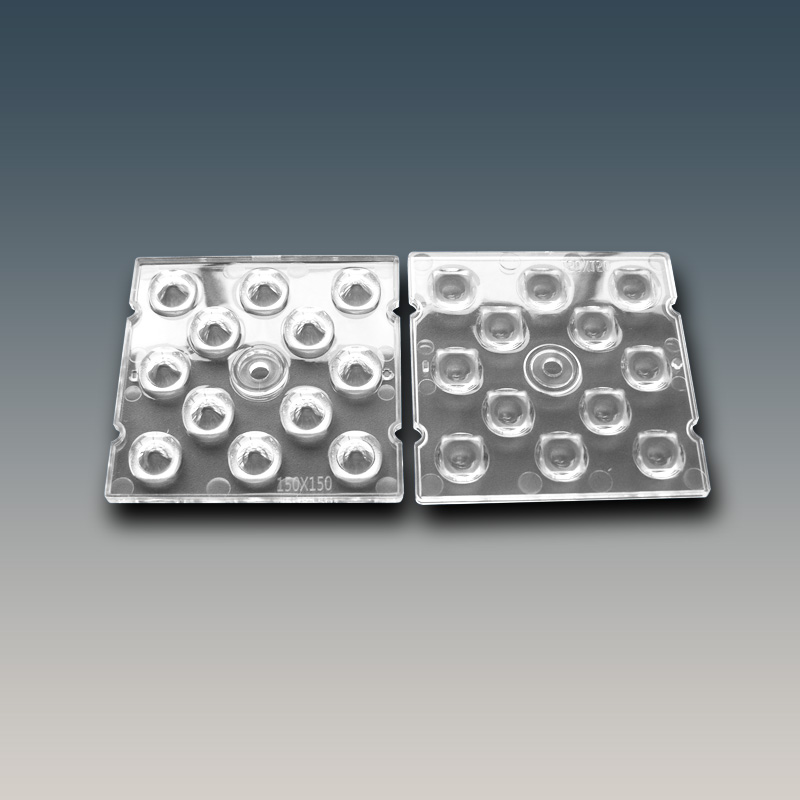

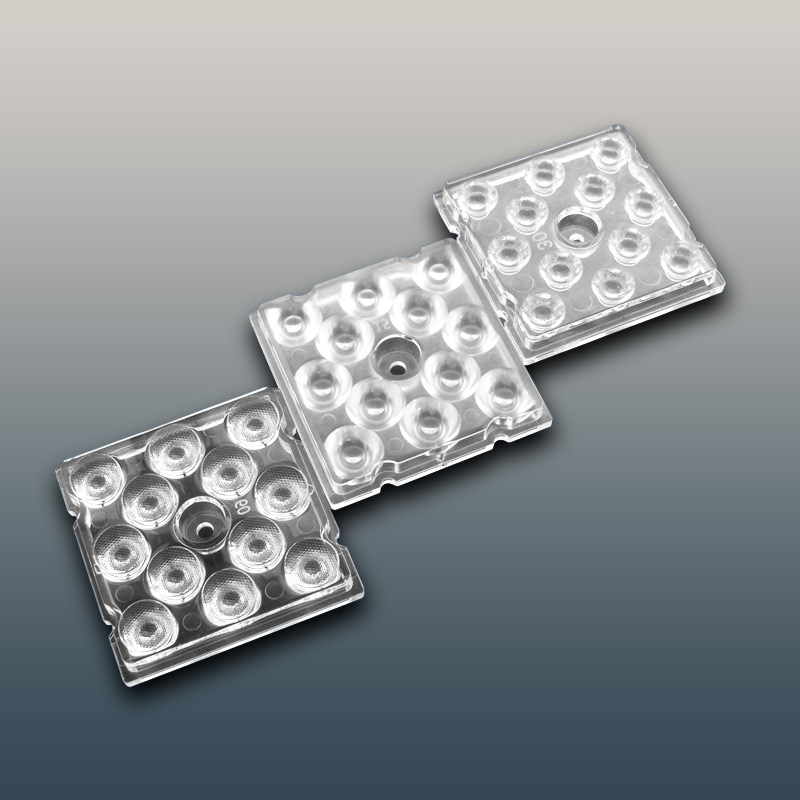

2X6 arrays 50 x 50 mm led lens for 3030 3535 5050 size LED packages for flood lights,tunnel lights,stadium lights,parking lot lighting,high bay lighting.( HX-F2x6-xx Series )

HX-F2x6-xx Series optics (50x50mm 2X6 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.


Product Description

HX-F2x6-xx Series optics (50x50mm 2X6 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting high bay lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
OSRAM SSL80,SSL150,Square,P8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535 ;

led lens|CREE led lens|Fresnel lens|streelights lens|AC LED lenses|glass lensled lens|CREE led lens|Fresnel lens|streelights lens|AC LED lenses|glass lensled lens|CREE led lens|Fresnel lens|streelights lens|AC LED lenses|glass lens

Product Selection Guide:

No. Part No.(Model) Matrix DIM(mm) Field Angle(deg) For LEDs Type Material

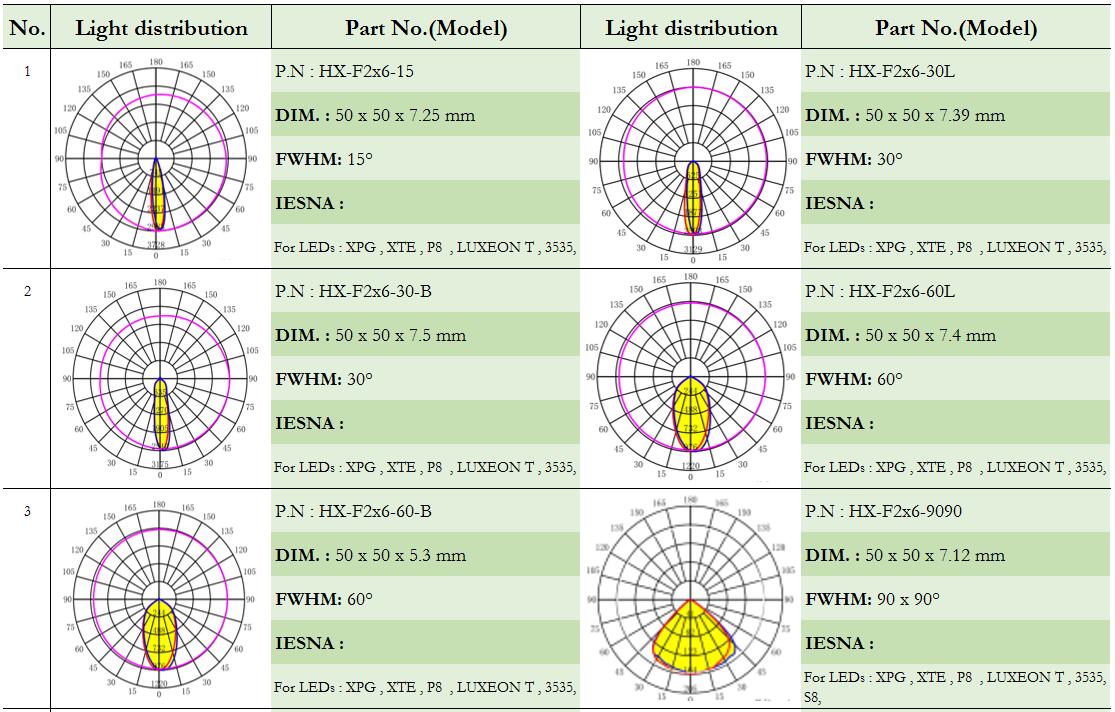

1 HX-F2x6-15 12IN1 49.89*49.89*7.25 15° 2835 , 3030   PC Anti-UV
2 HX-F2x6-30L 12IN1 49.89*49.89*7.39 30° 2835,3030,S5   PC Anti-UV
3 HX-F2x6-30-B 12IN1 49.9*49.9*7.5 30° 3535,2835, 3030   PC Anti-UV
4 HX-F2x6-60L 12IN1 49.89*49.89*7.4 60° 2835,3030,S5   PC Anti-UV
5 HX-F2x6-60-B 12IN1 49.9*49.9*5.3 60° 3535,2835, 3030   PC Anti-UV
6 HX-F2x6-9090 12IN1 49.89*49.89*7.12 90 x 90° XPG,XTE ,3030   PC Anti-UV
7 HX-F2x6-150150 12IN1 49.89*49.89*4.48 150 x 150° 2835 , 3030   PC Anti-UV

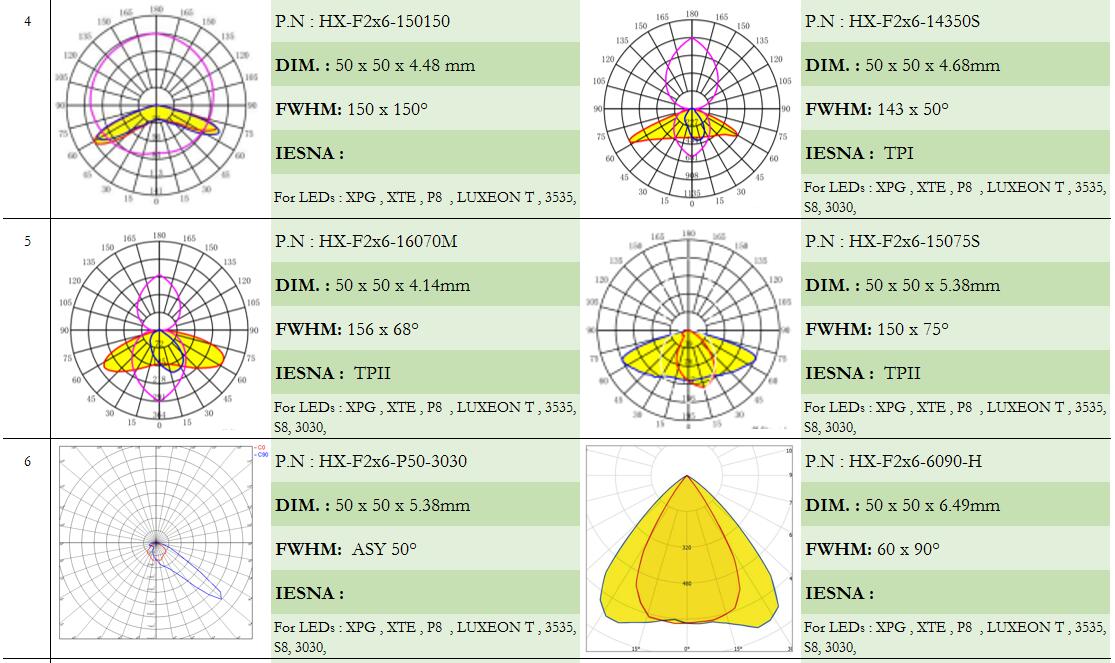

8 HX-F2x6-14350S 12IN1 49.89*49.89*4.68 143 x 50° 2835 , 3030 TPI PC Anti-UV
9 HX-F2x6-16070M 12IN1 49.8*49.8*4.14 156 x 68° 3030 TPII PC Anti-UV
10 HX-F2x6-15075S 12IN1 49.89*49.89*5.38 150 x 75° 2835 , 3030,S5 TPII PC Anti-UV
11 HX-F2x6-P50-3030 12IN1 49.89*49.89*5.38 P50° 3030   PC Anti-UV
12 HX-F2x6-6090-H 12IN1 49.89*49.89*6.49 60 x 90° 2835 , 3030   PC Anti-UV

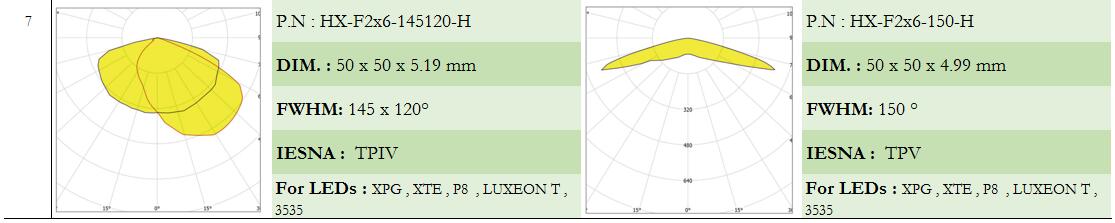

13 HX-F2x6-145120-H 12IN1 49.89*49.89*5.19 145 x 120° 2835,3030,S5 TPIV PC Anti-UV
14 HX-F2x6-150-H 12IN1 49.89*49.89*4.99 150° 2835,3030,S5 TPV PC Anti-UV



Product Download

Product Application

HX-F2x6-xx Series optics (50x50mm 2X6 arrays)) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.It is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
