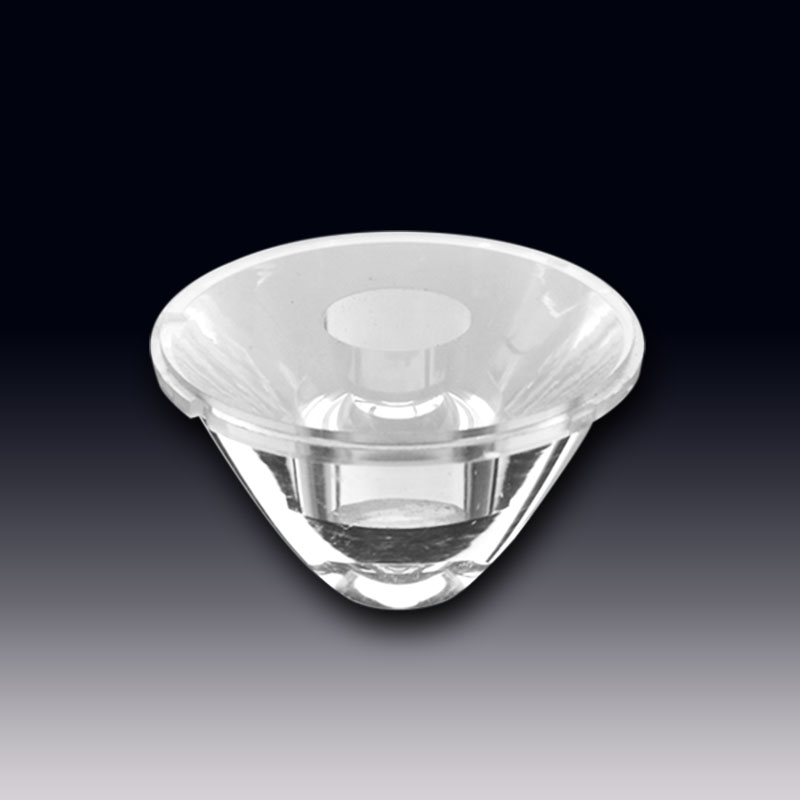

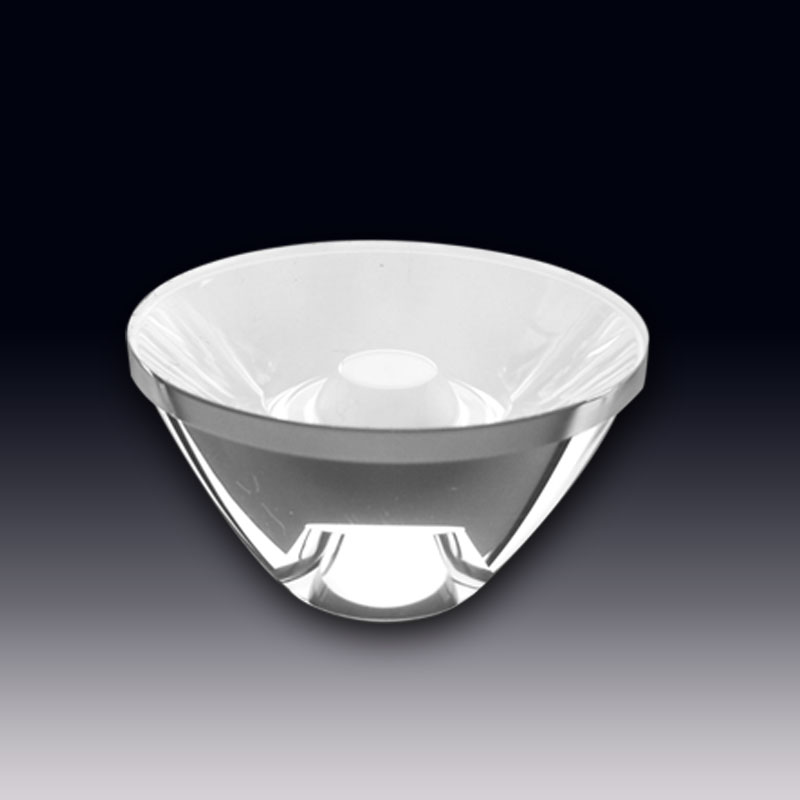

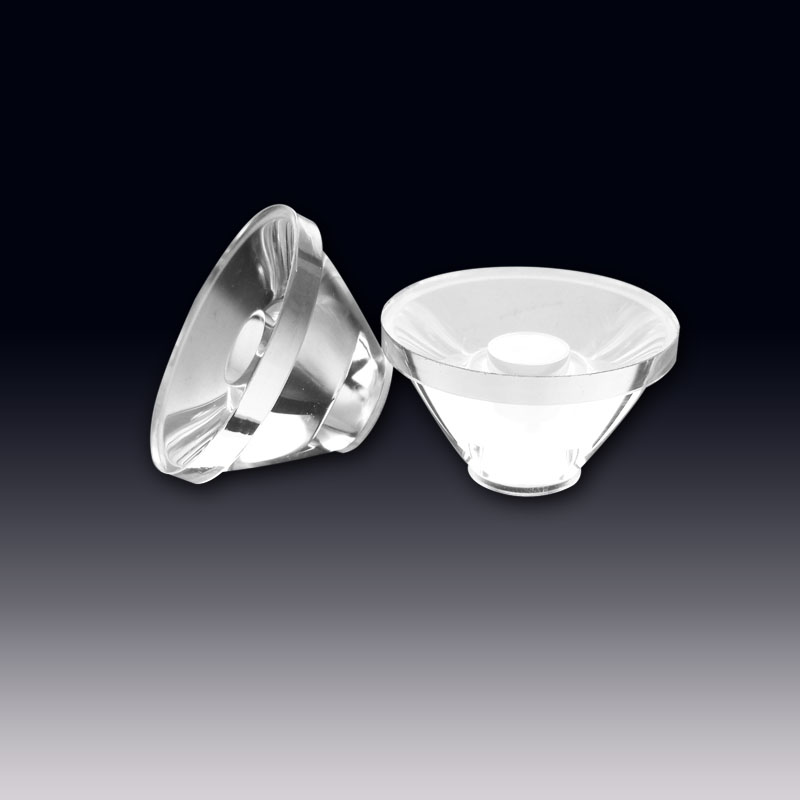

CREE XR LED Lens – Ø13 to Ø54mm, 5°|6°|8°|10°|30° PMMA Optical Lens

All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape, ensuring fast and easy installation. They offer a wide selection of beams, from narrow to wide flood. Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A RGBW LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), as well as security and traffic display lighting (or lens).


Product Description

CREE XR LED Lens – Ø13 to Ø54mm, 5°|6°|8°|10°|30° PMMA Optical Lens.

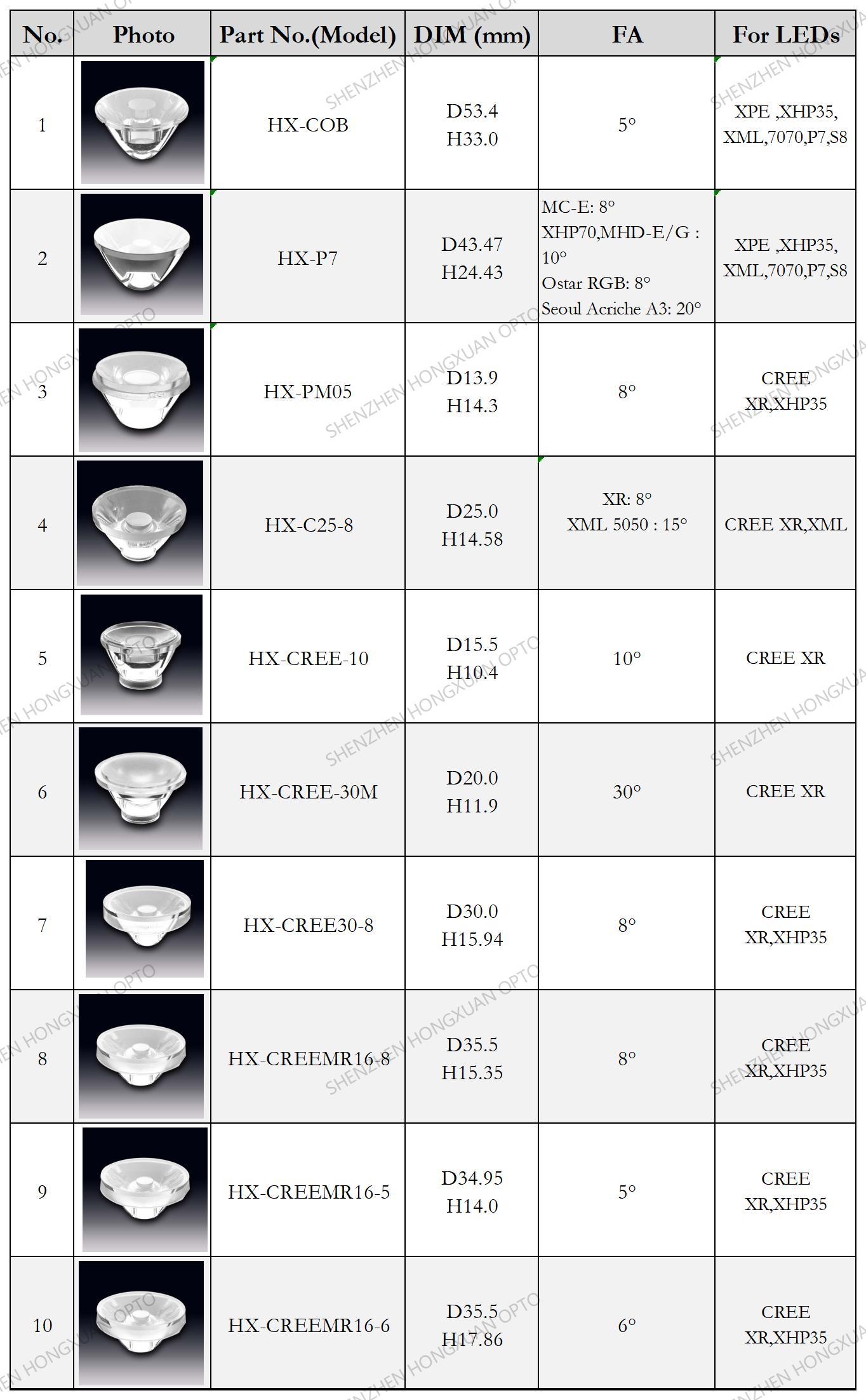

Product Selection Guide :

CREE XR led lenses, Glass Lenses, Fresnel lens, Streetlight lens

Product Download

Product Application

77. Lentes LED: 3030 LED with Integrated Lens Lentes LED 3030 SMDs (60lm per diode) feature an integrated 90° lens, eliminating external optics for simplified design. With 3.2V forward voltage and 16 million color options (RGB), they suit flexible strips or rigid panels. Technical details: 50,000-hour lifespan, RoHS compliance, and solderable terminals. Perfect for low-profile lighting, such as under-cabinet or shelf illumination. 78. Fujinon Lens: 16-55mm f/2.8 XF Lens Fujinon’s 16-55mm f/2.8 XF lens (24-84mm equivalent) for Fujifilm X-mount cameras features 12 elements in 9 groups, including ED and aspherical elements for minimal distortion. The constant f/2.8 aperture suits low-light photography, with weather-sealed construction. Technical specs: 77mm filter thread, 655g weight, and linear autofocus motor. Ideal for landscape, portrait, or event photography.

79. Linear Fresnel Lens: 1000mm Solar Linear Fresnel This 1000mm linear Fresnel lens (200mm width) concentrates sunlight into a linear focus, ideal for solar thermal systems or LED lighting. Made from extruded PMMA (90% transmittance), it weighs 1.5kg (50% lighter than glass). Technical details: 1mm thickness, UV-stabilized material, and 200mm focal length. Used in solar cookers, greenhouse lighting, or linear LED fixtures. 80. Objective Lens: 40X Microscope Objective Lens This 40X microscope objective lens (dry type) features a numerical aperture (NA) of 0.65, delivering 1.2μm resolution for biological samples. The achromatic design reduces chromatic aberration, with multi-coated surfaces for bright images. Technical specs: 160mm tube length, 0.17mm cover slip correction, and RMS thread (M25.4x0.75). Compatible with standard biological microscopes.

81. LED Reflector 12V: 50mm Ellipsoidal Reflector This 12V LED reflector (50mm x 30mm) focuses 3535/5050 SMD light into a 45° beam, ideal for automotive taillights or indicator lights. The anodized aluminum surface (94% reflectivity) withstands temperatures up to 120°C. Technical specs: snap-fit installation for 10mm PCBs, 0.3mm thickness, and compatibility with 1W-3W LEDs. 82. Telescopio Professional: 90mm APO Refractor Telescope This professional 90mm APO refractor telescope features a triplet lens (FPL-53 fluorite + two ED glass elements), eliminating chromatic aberration for astrophotography. The 900mm focal length (f/10) supports high-resolution imaging, with a 2in dual-speed focuser. Technical specs: multi-coated lenses, 99% light transmittance, and 5kg tube weight. Ideal for deep-sky photography or planetary observation.
